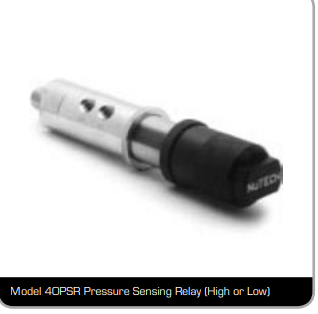

Model 4065PMAP 40PSR High/Low Pilot Manifold Assembly with 30C1P1 Three-Way Manual Reset Relay w/Pin Latch

DESCRIPTION

The NUTECH model 4065 PMAP is two (2) model
40PSR pressure-sensing relays assembled on a
manifold with a model 30C1P1 three-way manual
reset relay with pin latch. The pressure sensors
are configured for a high/low pressure sensing
application at a single process point. The manual
reset relay allows for a local control device that
applies the required supply pressure to operate an
end device, with manual reset and pin latch option.
This assembly is suited for applications where
pressure sensors and three-way block and bleed of a
control signal, such as control of a shutdown valve is
required, with lock out capability.

FEATURES
Pressure sensing relay
Sense pressure ranges from 30 psig to 10,000 psig.
Combination of springs and pistons deliver optimum
performance over a variety of pressure ranges.
Springs can be removed or replaced without
disconnecting sense line or control lines.
Routine maintenance procedures can be performed
without removing the device from the manifold in
most applications.

Three-way relay
The pin latch provides lock-out capability with
automatic unlatching when pilot port pressure is
present.
Relay design provides center crossover closed
condition during spool travel.
Routine maintenance procedures can be performed
without removing the device from the mounting in
most applications.
