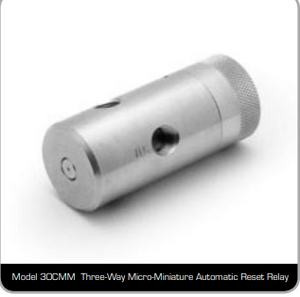

Model 30CMM Three-Way Micro-Miniature Automatic Reset Relay

DESCRIPTION

The NUTECH Model 30CMM is a three-way
micro-miniature automatic pneumatic relay.

FEATURES
The relay may be configured as three-way normally
closed or three-way normally open.
The spool stem visually indicates when the relay is
“in service” and when it is “tripped.”
Relay design provides for center crossover closed
condition during spool travel.
Screw-on rear cap assembly provides for simplified
field maintenance.
Small size supports applications with minimum
space requirements.
Routine maintenance procedures can be performed
without removing the device from its mounting in
most applications.

SPECIFICATIONS
Operating pressure range 25-100 psig
Material 316 SS per ASTM A-276
O-ring/Quad ring Viton®
, Temp. range -15˚F to +400˚F (std.)
BUNA-N, Temp. range -65˚F to + 215˚F (opt.)
Knob Delrin®
(std.)
Stainless Steel(opt.)
Length (reset) 3.17”
Length (tripped) 2.87”
Diameter 1.25”
Connections 1/8” FNPT
Weight 1.0 lb.
