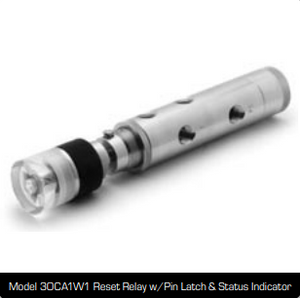

Model 30CA1W1 Reset Relay w/Pin Latch and Status Indicator

DESCRIPTION

The NUTECH Model 30C1W1 is a universal
three-way pneumatic control relay with pin latch and
pilot port status indicator. The relay can be locally
mounted or panel mounted. This relay is well-suited
in applications requiring three-way block and bleed
of a control signal, with automatic reset and pin latch
option, such as remote open/close of a shutdown
valve (SDV) or well SSV.

FEATURES
The pin latch provides lockout capability with
automatic unlatching when pilot pressure is present.
The visual indictor displays the pilot port (P1) status
when in the “reset” position.
Relay design provides for center crossover closed
condition during spool travel.
Routine maintenance procedures can be performed
without removing the device from its mounting in
most applications.
Uses the 15IDR as operator pilot port status indicator.
May be universally configured (three-way normally
closed, three-way normally open, etc.).
Screw-on rear cap assembly provides for simplified
maintenance.

SPECIFICATIONS
Operating pressure range 25-125 psig
Material 316 SS per ASTM A-276
O-ring Viton®
, Temp. range -15˚F to + 400˚F (std.)
 BUNA-N, Temp. range -65˚F to + 215˚F (opt.)
Length (reset) 9.80”
Length (tripped) 9.21”
Diameter 1.50”
Connections 1/4” FNPT
Weight 3.5 lb.
