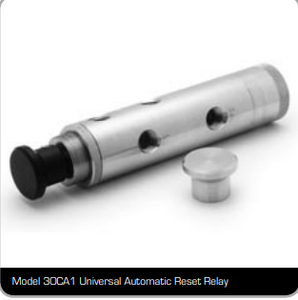

Model 30CA1 Universal Automatic Reset Rela

DESCRIPTION

The NUTECH Model 30CA1 is a universal three-way
automatic reset, pneumatic control relay. The relay
can be locally mounted or panel-mounted and is
suitable for a variety of applications as outlined below.

FEATURES
May be panel-mounted or in-line mounted.
May be universally configured (three-way normally
closed, three-way normally open, etc.).
Screw-on rear cap assembly provides for
simplified maintenance.
May be operated automatically or manually.
Adaptable for double pilot operation.
Relay design provides for center crossover closed
condition during spool travel.
Routine maintenance procedures can be performed
without removing the device from its mounting in
most applications.

SPECIFICATIONS
Operating pressure range 25-125 psig
Material 316 SS per ASTM A-276
O-ring Viton®
, Temp. range -15˚F to + 400˚F (std.)
 BUNA-N, Temp. range -65˚F to + 215˚F (opt.)
Knob Delrin®
(std.)
Stainless Steel (opt.)
Length (reset) 7.86”
Length (tripped) 7.20”
Diameter 1.50”
Connections 1/4” FNPT
Weight 3.0 lb.
