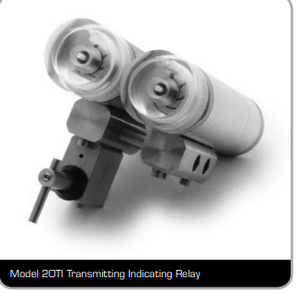

Model 20TI Transmitting Indicating Relay

DESCRIPTION

The NETECH Model 20TI is a panel-mounted,
pilot-operated, two-way indicating pneumatic relay
normally used as a first-out indicating and control
device. It transmits a pressure signal to a normally
closed vent-type end device. When the end device
opens (trips), the transmitted pressure signal is
reduced, allowing the spool to shift and the control
signal to be exhausted. The affected relay displays a
“red” indication.

FEATURES

Manifold design allows close coupling of individual
relays within a group, thus reducing space
requirements; also provides reduction in installation
cost by reducing installation labor and the number of
fittings required.
The optional bypass valve further reduces cost with
its “fitting-free” mounting.
Screw-on rear cap assembly provides for simplified
field maintenance.
Routine maintenance procedures can be performed
without removing the device from its mounting in
most applications.

SPECIFICATIONS
Operating pressure range 25-50 psig
Material 316 SS per ASTM A-276
O-ring Viton®
, Temp. range -15˚F to+400˚F (std.)
 BUNA-N, Temp. range -65˚F to+215˚F (opt.)
Length (with lens) 6.10”
Diameter 1.50”
Height (with manifold) 2.26”
 (with bypass valve) 3.70”
Connections 1/4” FNPT
Weight (with manifold) 3.0 lb
 (with bypass valve) 3.5 lb
