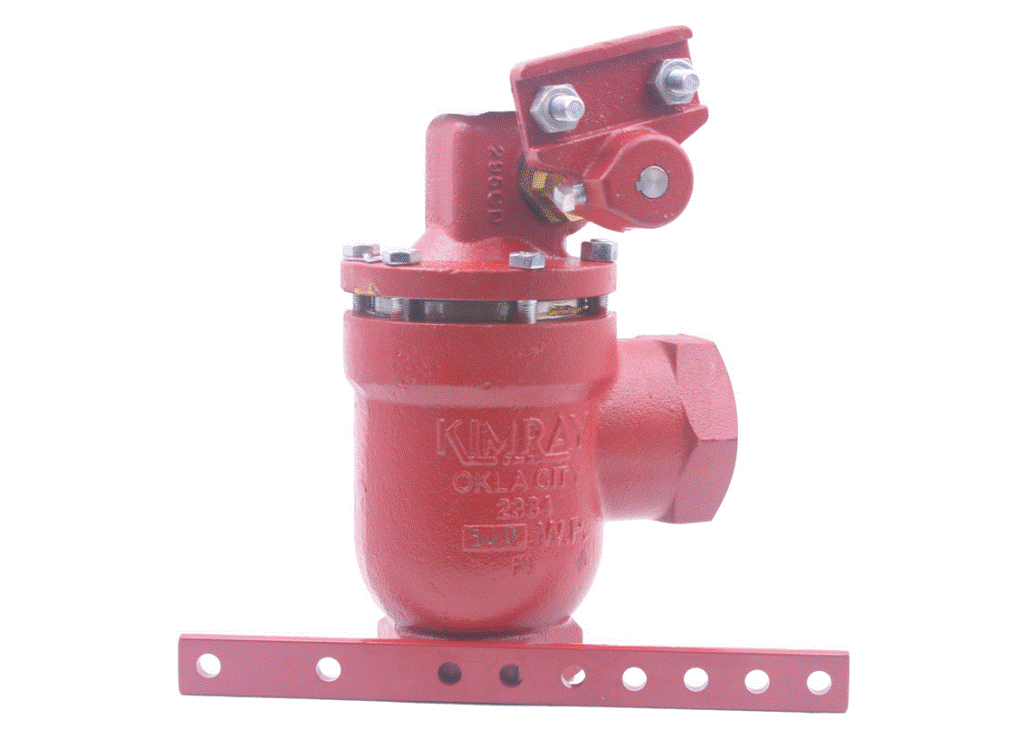

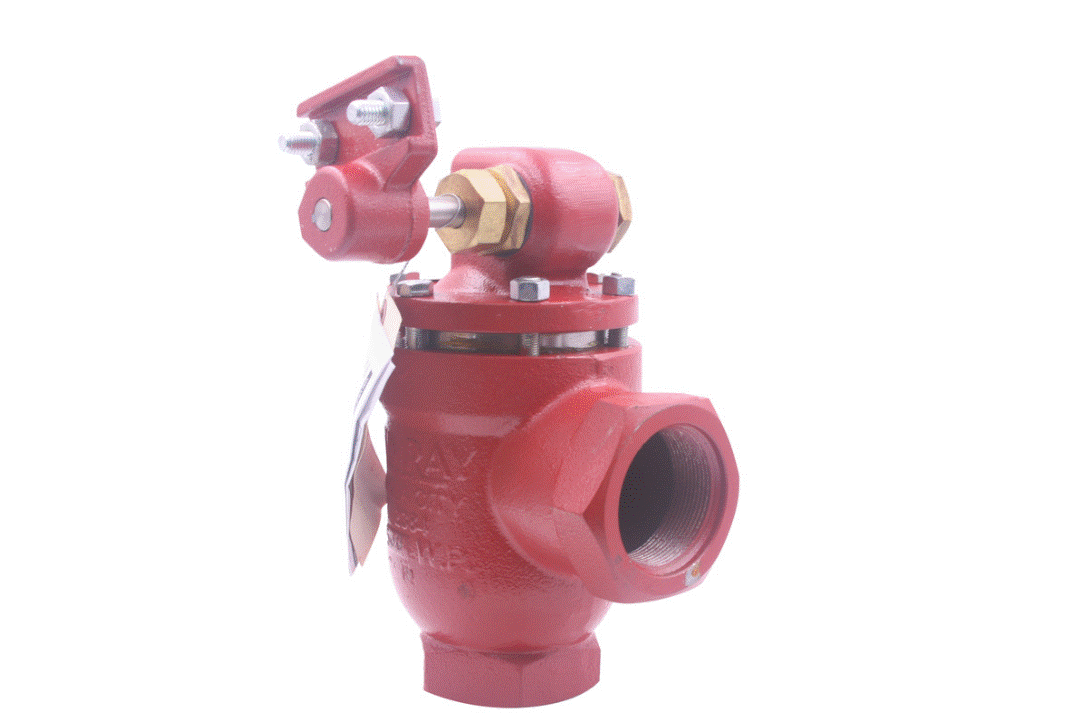

Mechanical Pump O/W Valve, 250 SOA PB-D, Kimray

Product Description

Kimray 250 SOA PB-D MECH O/W Valve, CAZ

"Piston Balanced" means that the upstream and downstream pressures used to counterbalance the forces on the trim are separated by a piston, sealed with an O-ring, allowing for higher pressure differential.

Specifications:

• Connection Size: 2 "
• Connection Type: Female NPT
• Body Style: Angled Body
• Body Material: Cast Ductile
• Option Available for NACE MR0175 compliance or certification.
• Trim Size: 1.5 "
• Trim Type: Linear (Nominal)
• Seal Class: Class VI
• Process Fluid: Liquid and Gas
• Max. Working Pressure: 500 psig
• Operation: Mechanical
