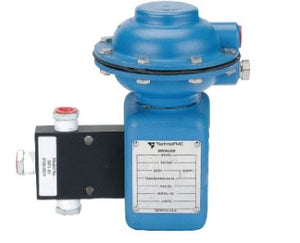

Invalco CDM CDM-3801B Adjustable Snap Acting Pressure Switch
Invlaco Model CDM-3801B Adjustable Snap Acting Pressure Switch
The INVALCO Model CDM is a diaphragm-operated Pressure Switch for pneumatic or hydraulic control. The unit is equipped with one or two snap-acting three-way Micro Valves® to provide on/off output to one or more controlled circuits. Since the Micro Valves® are completely isolated from the diaphragm, and also isolated from each other, various control output pressures and media may be used in the same CDM pilot.
SPECIFICATIONS
| Materials of Construction | |
| Diaphragm Case and Case | Aluminum |
| Micro Valve® | • Aluminum body, stainless trim, Nitrile inserts and seals. • Other materials available on special order. |
| Stem and Bushing | Stainless and brass |
| Micro Valve® Flow Characteristics | Type 38F1, 1/8″ Orifice @ 100 psig. |
| Maximum Working Pressure | • Micro Valve: 100 psig. |
