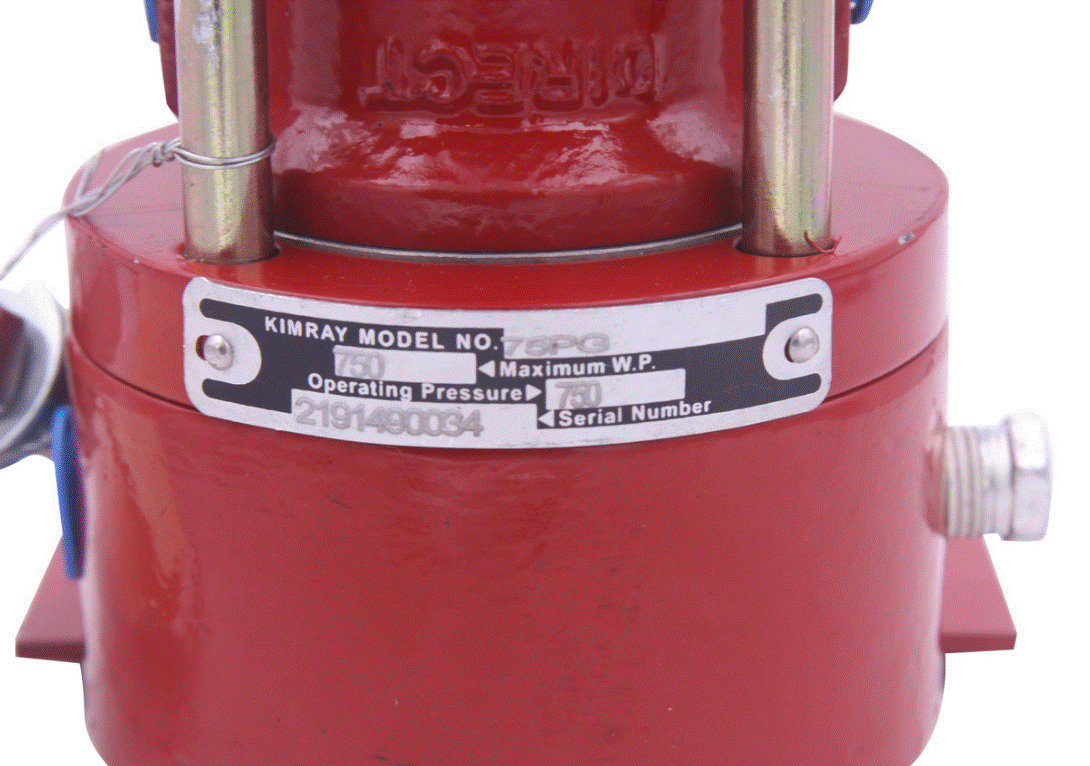

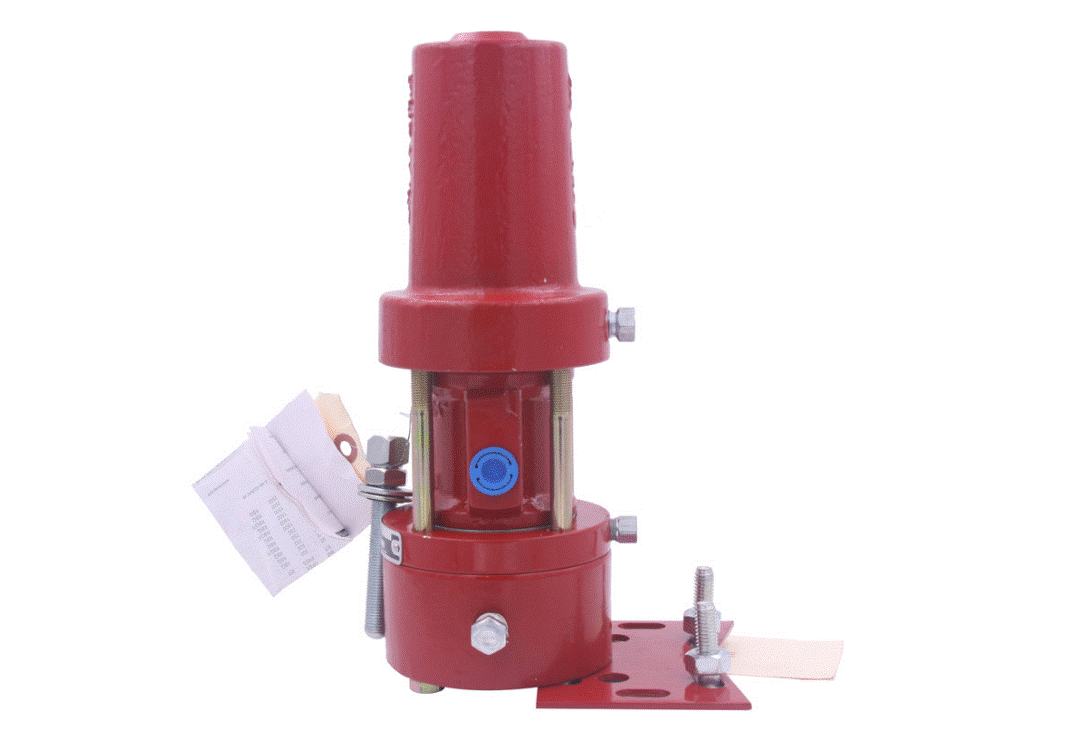

75 PG, Pilot Indirect AFZ2, Kimray

Kimray 75 PG Pilot Indirect AFZ2

These pilots are most commonly used in Kimray Pressure Regulator Packages. Pilot may be installed remotely from the control valve, sensing upstream or downstream. Pressure sensing ranges in this category span from ounces up to high pressure.

Specifications:

• Connection Size: 0.25 "
• Connection Type: Female NPT
• Body Material: Steel
• Option Available for NACE MR0175 compliance or certification.
• Pilot Type:Vent
• Pilot Output: Indirect (Field Reversible to Direct)
• Max. Working Pressure: 750 psig
• Min. Set Point Pressure: 75 psig
• Max. Set Point Pressure: 750 psig
• Operation: Pneumatic
